geoDVR Mini

Single or 2 Channel-Camera Geospatial Video Recorder for Aircraft Vehicle Marine Unmanned Data Collection Platforms

The geoDVR™ Mini is a professional-grade, single-channel HD GPS-enabled video recorder and mapping system for collecting geo-referenced videos and MISB FMV from aerial, vehicle and marine platforms.

Designed and built for commercial survey and critical infrastructure inspection and surveillance projects, the geoDVR Mini leverages a powerful new processer for more flexible geospatial video recording options and running an all-new Live Moving Maps interface for interactive mission mapping and execution.

Connect most gyro-stabilized gimbals, fixed-mount, and handheld video cameras to the geoDVR, and in seconds, operators can start recording geo-referenced video files

Recorded and live geospatial video can be played-back and leveraged in survey and inspection reporting software like our LineVision solutions, Esri’s ArcGIS tools, work dispatch, mission planning and asset management systems.

geoDVR Tablet Features

HD Video Recording System for Airborne, Vehicle and Marine Mapping Platforms.

Geo-reference HD Videos

Record full motion video (FMV) with continuous GPS data, including support for synchronized GPX files, MISB/STANAG-spec embedded metadata and Camera Target Footprint (CTF) data.

Camera Agnostic

Record geospatial video from most any camera, including multi-sensor gyro-stabilized gimbals, fixed-mount and handheld video cameras with BNC & Ethernet connections.

Capture Waypoints & Events

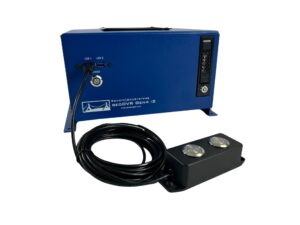

Use handheld switch or touchscreen monitor to log points of interest (POI) with geotagged still images captured from video and optional descriptions.

Configurable User Interface

Customize the layout and sizing of live video previews, map windows and other interface components, save up to 4 unique profiles and settings for different missions.

Push-to-Talk Audio

The geoDVR Mini includes built in push-to-talk (PPT) capabilities allowing operators to only record observer and/or cabin audio comments in the video files when the button is engaged.

Custom Recording Quality Settings

Users can choose between Highest, High, Medium and Low video recording quality or configure Custom settings per channel including bitrate, compression encoding location and more.

Map-Ready Data

Geotagged video files, live streams and still images can be loaded for interactive map-based viewing, geo-editing, analysis and reporting in our LineVision software - no post-processing required!

Optional Modules

Upgrade your geoDVR system with optional modules for additional in-mission situational awareness, camera/sensor data collection and post-mission mapping and asset management.

Some features and specifications will vary based on geoDVR configuration, optional modules selected and/or types of cameras/sensors used.

geoDVR Mini Optional Modules

Our optional geoDVR modules offer flexible and scalable capabilities for enhanced in-flight mission capabilities and metadata capture requirements for a variety of geospatial full motion video data collection applications.

geoDVR Mini Specifications

Video Camera Connections

Configured to order, Single and Multi-channel HD/SD configurations are available.

1 Channel BNC Input (digital & analog)
1 Channel Ethernet/IP Input
Support for: HD-SDI (HD), 3G-SDI

Video File Formats

.MP4
.AVI
.TS

Supported Video Camera Resolutions

HD (High-Definition)

1920×1080, 1280×720

Audio

For real-time status updates & in-mission audio comments

Line-out (real-time status updates)
Mic-In (in-mission comments)
USB Mic-in/Line-out
Embedded Audio

Connections & Media

4 x USB 3.0 Ports
2 x USB 2.0 Ports
2 x Ethernet Ports
2 x RS232 COM Ports
1 x Micro SIM Card Slot
Display: 1 x HDMI, 1 x DisplayPort
Storage: Internal 250 GB or 500 GB

Hardware Specifications

CPU: Intel i7 6600U (Dual Core w/ Hyper-threading, 2.6 to 3.4 GHz)
RAM: 8 GB DDR4 (up to 32 GB supported)

Power

12V DC

Form Factor & Mounting

Construction: Aluminum Alloy
Weight: ~2.6 kg / 5.6 lbs (without accessories)
Dimensions: 250 x 150 x 55 mm
Mounting: VESA-mount & Wall-mount

Some features and specifications will vary based on geoDVR Mini configuration, optional modules selected and/or types of camera(s) used. Specifications are subject to change.

Ready to Get Started?

Free Trial

We offer Full-featured, 7-day FREE Software Trials for Any Version with Sample geoDVR Video. No Credit Card Required!

Download Trial

Get Quote

Request a geoDVR Mini Quote Configured for Your In-mission Data Collection and Post-Mission Deliverable Requirements.

Request Quote

Schedule Demo

Request a Demo to See How the geoDVR Mini and Other Solutions Can Add Value to Your Remote Sensing Projects.

Request Demo

Video & Data Mapping Software for geoDVR

Playback and analyze georeferenced geoDVR videos and data with our interactive LineVision mapping and reporting software suite with support for the Remote GeoSystems “geoProject” deliverable format.
