geoDVR Gen3

Multi-Camera Geospatial Video Recorder for Aircraft Vehicle Marine Unmanned Data Collection Platforms

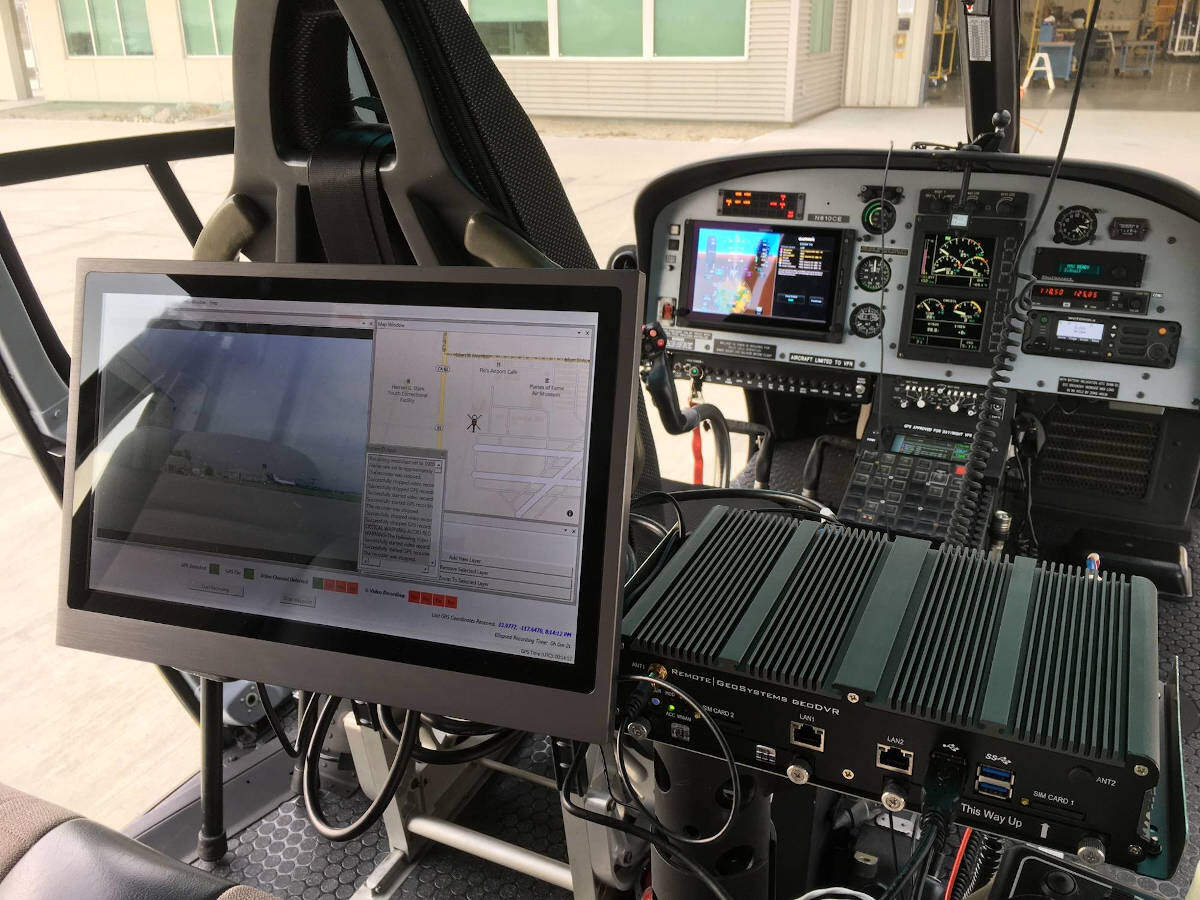

The geoDVR™ Gen3 is a professional-grade, multi-channel, HD/SD, GPS-enabled video recorder and mapping system for collecting geo-referenced videos and MISB FMV from aerial, vehicle and marine platforms.

Designed and built for commercial survey and critical infrastructure inspection and surveillance projects, the geoDVR Gen3 leverages a powerful new processer for more flexible geospatial video recording options and running an all-new Live Moving Maps interface for interactive mission mapping and execution.

Connect most gyro-stabilized gimbals, fixed-mount, and handheld video cameras to the geoDVR, and in seconds, operators can start recording geo-referenced video files

Recorded and live geospatial video can be played-back and leveraged in survey and inspection reporting software like our LineVision solutions, Esri’s ArcGIS tools, work dispatch, mission planning and asset management systems.

geoDVR Gen3 Capabilities

Professional and Portable Geospatial Full Motion Video Recorder and Map-based Reporting Solution for Airborne, Vehicle, Mobile Mapping & Survey Projects.

(Click to expand. Features vary by configuration)

Geospatial Video & Metadata Recordings

Record & geo-reference HD and SD video with GPS data for mappping software

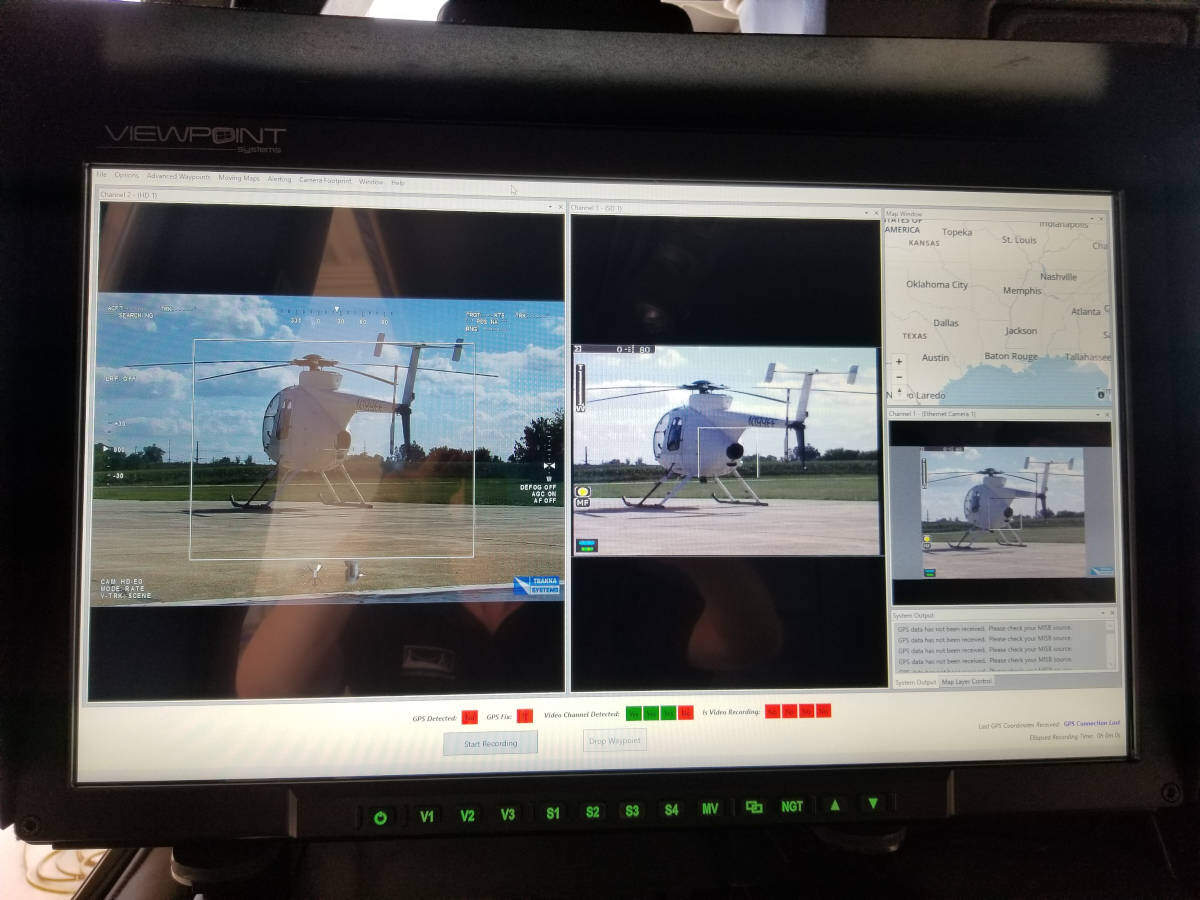

Multiplex and customize layout of live video feeds and other modules on any standard monitor
Use waypoint trigger to log points of interest (POI) with video and audio
Snap & save geotagged still photos from video while recording and post-mission
Removable large capacity solid state drives (SSD) for longer recording time
Video writes speeds up to 30x faster than CF & SD cards
Watermark video with GPS and UTC time

Geotag Videos & Photos

Continuous GPS Log File: GPX
Includes: Latitude, Longitude, Time, Altitude, Speed, Heading & More
Remote GeoSystems Whisper (our Patented, “Constantly-Persistent” GPS Encoding)
Optional Module – STANAG 4609 KLV / MISB Full Motion Video (FMV)
Optional Module – Remote GeoSystems “Camera Target Footprint” Protocol (Similar to STANAG 4609 / MISB FMV spec but with our support for modern video formats and custom location-based metadata)

MISB FMV & Camera Target Footprint (CTF) Support

MISB FMV Spec Videos with KLV Encoded Metadata
Remote GeoSystems Spec Camera-Target-Footprint (CTF) Videos
Easily Prepare DJI Drone Metadata for Esri’s FMV Multiplexer Tool

Geospatial Reporting & Deliverables

Auto-generate Microsoft Word and Excel Reports
Export Text and Lat/Long Overlay into Video Closed Captioning
Create, Save and Share geoProjects for other LineVision Versions
Export Future Mission Plans as KML

Mapping & GIS Data Integration

Interactive Map Interface Leveraging Esri GIS
Esri-based Streets, Imagery, Topo & Oceans Base Maps
Add Shapefiles & Raster Imagery and supported KML
Stream Maps from ArcGIS Enterprise & ArcGIS Online

Map Notes, Annotations, Documents & Other Sensor Data

Add Metadata & Descriptions to Videos, Photos, POIs & More
Attach Notes & Files to Map Locations
Available Support for Remote Sensing Data Systems

Drone & Unmanned Systems Support

Military UAVs Using the MISB FMV/STANAG KLV Video Specification
Gimbals Using the Remote Geo Camera-Target-Footprint Spec
Specialized Subsea ROV Underwater GPS Systems

geoDVR Gen3 Optional Modules

Our geoDVR modules offer scalable options for even greater in-mission capabilities for professional geospatial full motion video data collection projects.

geoDVR Module Banner Image - Gimbal Geo-Pointing

geoDVR Gen3 Specifications

Video Camera Connections

Configured to order, Single and Multi-channel HD/SD configurations are available.

1-6 x BNC Input (digital & analog)

Ethernet/IP Input

Support for: SD, SD-SDI, HD-SDI (HD), 3G-SDI

Video File Formats

.MP4

.AVI

.TS

Supported Video Camera Resolutions

HD (High-Definition)

1920×1080, 1280×720

SD (Standard-Definition)

NTSC: 720×480, 704×480, 640×480, 720×240, 704×240, 640×240, 352×240, 320×240

PAL: 720×576, 704×576, 720×288, 704×288, 640×288, 352×288, 320×288

Audio

For real-time status updates & in-mission audio comments

Line-out (real-time status updates)

Mic-In (in-mission comments)

USB Mic-in/Line-out

Embedded Audio

Connections & Media

2 x USB 3.0 Ports

2 x USB 2.0 Ports

2 x Ethernet Ports

2 x RS232 COM Ports

2 x SIM Card Slots

1 x GPS Antenna

Display: 1 x VGA, 1 x DVI & 1 x DisplayPort

Storage: Removable 250 GB, 500 GB or 1 TB Solid State Drive (expandable by custom order)

Hardware Specifications

CPU: Intel i7 6600U (Dual Core w/ Hyper-threading, 2.6 to 3.4 GHz)

RAM: 8 GB DDR4 (up to 32 GB supported)

Power

9V to 36V DC

Form Factor & Mounting

Construction: Aluminum Alloy

Weight: ~2.6 kg / 5.6 lbs (without accessories)

Dimensions: 250 x 150 x 55 mm

Mounting: VESA-mount & Wall-mount

Environmental

Operating Temp: -40ºC ~ 70ºC

Relative Humidity: 0% RH – 95% RH

Vibration (random): 2.5g@5~500 Hz with SSD

Vibration Operating: MIL-STD-810F, Method 514.5, Category 4

Shock: Operating: MIL-STD-810F, Method 516.5, Procedure I

Crash Hazard: MIL-STD-810F, Method 516.5, Procedure V

Certifications: CE, FCC Class A, eMark Compliance, EN50155

Some features and specifications will vary based on geoDVR configuration, optional modules selected and/or types of camera(s) used. Specifications are subject to change.
